CHEK-WAY Eliminator – Multi axle group on-board scales


Tramanco’s on board scales for trucks and trailers are Australian designed and manufactured. The CHEK-WAY® Eliminator series of electronic on-board scales allows you to accurately acquire the necessary information to:

  • Improve Productivity and Profitability
  • Invoice correctly – no lost loads
  • Print out option for proof of pick-up and/or delivery (P.O.D)
  • Avoid being underloaded or incorrectly loaded
  • Reduced paperwork
  • Reduce expense and lost time at public weigh bridges
  • Immediate on-board quality assurance
  • Fully certified to ISO 9001
  • Fully complies with all current PBS/HML recommendations
  • AUTO-ID® and AUTO-CAL® software for interoperability
  • Reduce Chain of Responsibility exposure immediately
  • Tamper evidential data for compliance purposes

CHEK-WAY® Eliminator communicates with other devices, such as:

  • On-board computers
  • Barcode readers
  • RFID tag readers
  • Android App Phone-Way
  • Transponder systems
  • GPS and GPRS systems
  • 2-way RF data systems

Choose CHEK-WAY® Eliminator for the latest weighing solutions for:

  • Trucks & Trailers
  • Weighbridge’s
  • On-Off Highway
  • Agricultural Applications
  • Mining Industry
  • Waste collection Industry
  • Truck Mounted Cranes and Side-loaders
  • On-Board Electronic Scales



CHEK-WAY® Eliminator Display Unit as configured for a B-Double Truck and Trailers eight-channel-on-board-truck-scales-configuration-1024x584
 Typical eight axle group CHEK-WAY® Eliminator configuration


SPECIFICATIONS
  • 12/24V DC power supply
  • Ignition activated display
  • 3 wire digital multiplexed communications system
  • Multi channel capabilities with AUTO-ID® and AUTO-CAL® for interoperability
  • Used with different weight sensors in any combination:
    • Air or Hydraulic Pressure Transducers
    • Front Axle Transducers
    • Load Cells
  • Dual calibration for lift axles and sliding turntables
  • INS-COM® Software (IN Service COMpliance) for
    • Road friendly suspension Testing, and
    • Last mile access test
OPERATOR DISPLAY
  • Dual line LCD backlit display for day/night operation
  • Weights displayed in 10,20, or 50 Kg increments
  • load monitoring and Prof of Delivery
  • Time and Date records
  • Overload alarms
  • In-built diagnostics
  • User friendly, compact, push button operation
  • Digital calibration
  • Password Protection
OPTIONS
  • GPS interface
  • In-cabin or external printers
  • Android App Phone-Way
  • Bluetooth
  • Barcode and RFID tag readers
  • Vehicle and driver ID’s
  • Hand held remote weight displays
TYPICAL CONFIGURATIONS
  • On-board weighing system for all combinations of trucks and trailers
  • Crane scale and Side-loader weighing systems
  • Weighing system for the waste industry:
    • Front end loader
    • Side load lifter
    • Rear end lifter
  • Weighbridge system
  • Customisation to suit user requirements

________________________________________________________________

Compare before you buy

Features CHEK-WAY Others
Dual-line display ✔
Back lit display ✔
Display total/s and axle group weights simultaneously ✔
Nett/gross push button ✔
Calibration data stored in Smart-Amp, not metre ✔
AUTO-ID and MANUAL-ID functions ✔
Up to eight axle groups in the one system ✔
Works with ✔
Works with any make or model of load cell technology. (Air, displacement load cells, hydraulic) ✔
Up to eight load cells per group ✔
Total of 64 load cells per system ✔
RF data link ✔
GPS Link ✔
Hand held remote weights display ✔
Remote Interigation Unit to operate scales from a distance (RIU) ✔
In-built data log ✔
Real time clock with date stamp ✔
In-built self diagnostics ✔
Password protected ✔
Security processors ✔
Automatic calibration recording ✔
Standard printer interface ✔
Modular Construction ✔
12 or 24 volt operations ✔
Standard and customised software programs ✔
RFID tag interface ✔
In service conformance for mass managment ✔
Tamper proof and evident data records ✔

________________________________________________________________

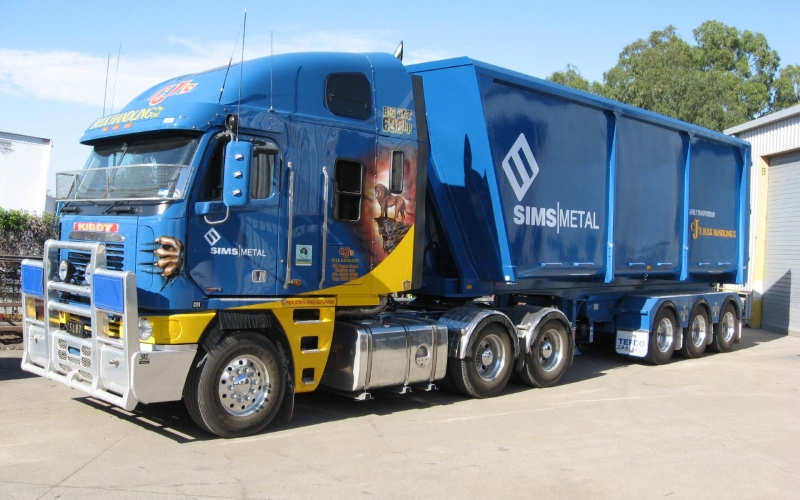

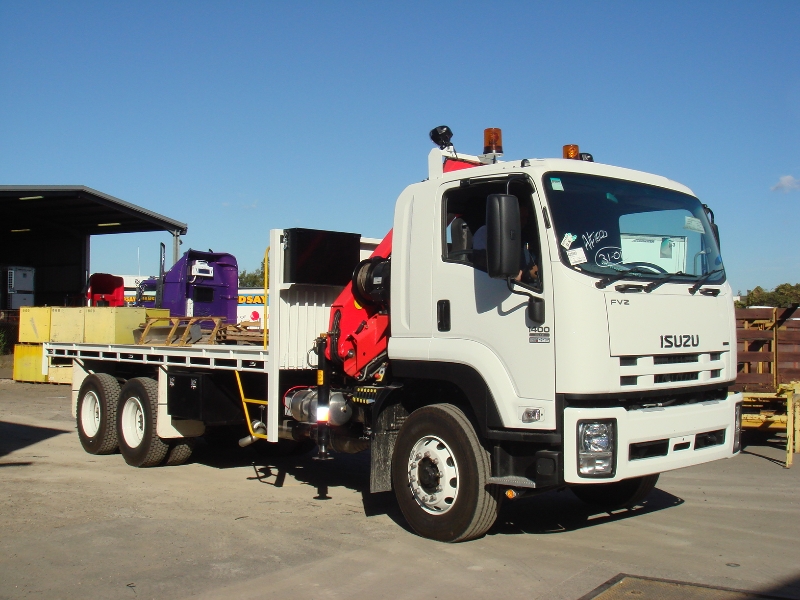

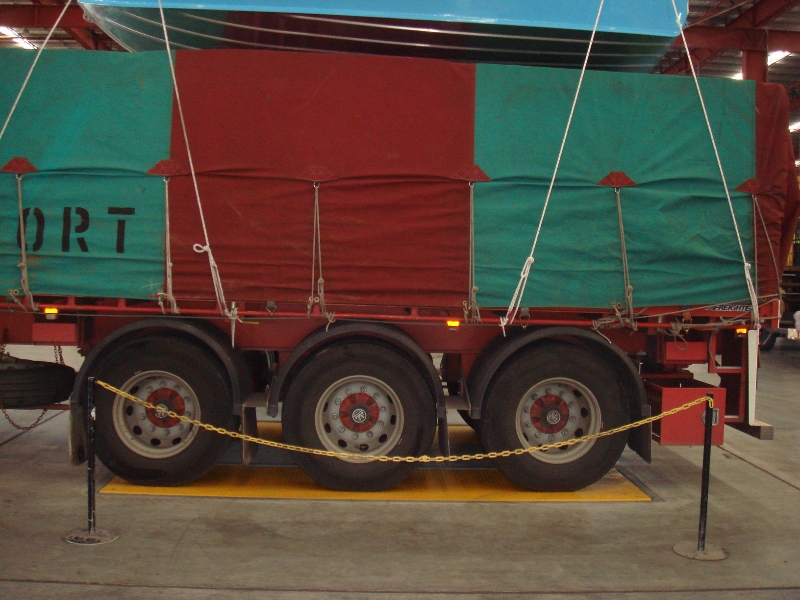

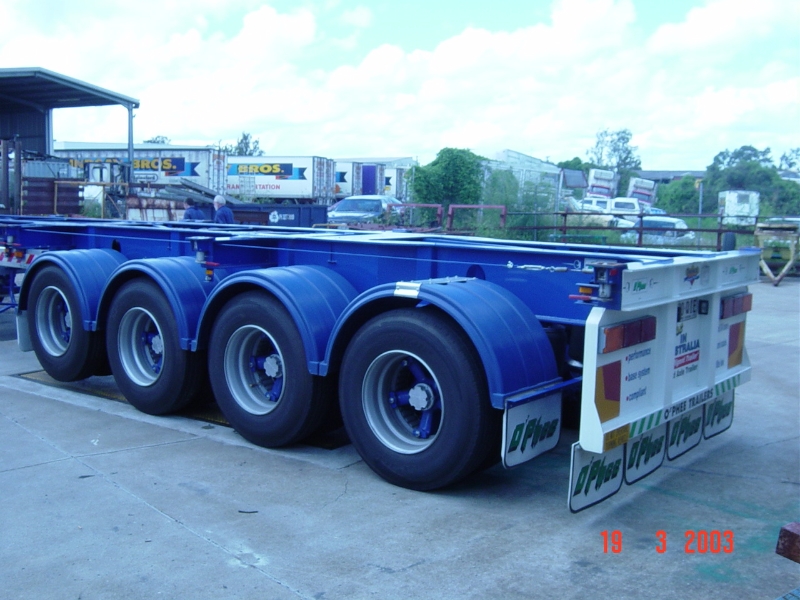

Installations

________________________________________________________________

Downloads

 CHEK-WAY Brochure

System Layouts

 A-Double layout

 AB-Triple layout

 Auger layout

 B-Double layout

 B-Triple layout

 Rigid with load cell layout

 Truck and Dog layout

For more information or Product Manuals please contact Tramanco.
