Phone WAY – Remote hand held weights display

Remote on-board truck scales display for a four axle group scales system such as an A-double or truck and dog configuration.

Phone-Way© is a hand held mobile application for remote viewing of on-board truck scales, truck mounted cranes and weigh-bridges  With Phone-Way you can extend the capabilities and features of the Chek-Way® on-board electronic scales, whilst retaining the functionality and features of a smart phone.

Chek-Way systems convenience, practicality, productivity and profitability will only increase using Phone-Way’s features, letting you focus on what’s important; total control of the job at hand.

 _______________________________________________________________

Payload Managment

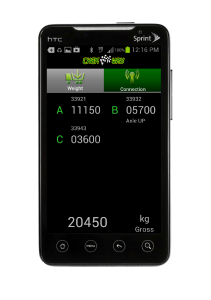

Remote on-board truck scales display for a three axle group scales system such as a B-double configuration with a lift axle.



The fastest and easiest way to manage vehicle loads in the palm of your hand. View your axle group weights from inside and outside of the vehicle with an AndroidTM phone or tablet. Weights appear in real time. Acquiring vehicle weights for chain of responsibility and payload management purposes prior to leaving the loading and unloading site has never been easier.



________________________________________________________________

Notifications

Remote on-board truck scales display for a three axle group scales system such as a B-double configuration with an incorrect axle loading.





Incorrectly loaded axle groups are displayed in red to alert the operator to any incorrect axle weights; giving you total control of the job at hand.





________________________________________________________________

Graphical User Interface

Phone-Way connection window with available vehicles fitted with chek-way on-board truck scales.





With Phone-Way’s user friendly interface, all functionality and system information is displayed directly through the use of tabs and colours. Simply enable the app for Bluetooth®and connect to the vehicle of choice.





________________________________________________________________

Smart Phone Capabilities

Remote weigh bridge display for a five axle group vehicle configuration with separate steer and drive groups.





View all axle group data on the Phone-Way home screen; while not interfering with calls, text messages, and emails.*



* The phone can be locked to only run the Phone-Way application, thus preventing the usage of the smart phone.

________________________________________________________________

System Integration

Remote weigh bridge display for a four axle group vehicle configuration. vehicles drive axle group is being measured.





Phone-Way integrates with all Chek-Way on-board scales, weigh bridges and truck mounted crane scales, thus providing further to your requirements.



________________________________________________________________

Vehicle Selection

Phone-Way connection window with available vehicles fitted with chek-way on-board truck scales.



With Phone-Way you can switch between vehicles by selecting the vehicle registration or fleet number and Phone-Way does the rest.

Phone-Way remembers the last vehicle selected; if the operator moves out of range, Phone-Way goes into scan mode and automatically re-connects to the same vehicle when in range again.

________________________________________________________________

Connectivity

The applications connection status to a Chek-Way system is indicated by the displayed colour of the connection tab, green for a connection and red for no connection. This is another way Phone-Way helps to reduce errors.

________________________________________________________________

Interface

Phone-Way On-Board Scales Display

A four axle group vehicle configuration used in the below example includes prime mover (channel A) and trailer and dolly groups (channel B, C, and D).

  1. Weights display tab. Touch this tab to display vehicle’s weight data.
  2. Chek-Way Smart Amp (CWE-5200) identification number.
  3. Axle group weight.
  4. Axle group channel identification.
  5. Vehicle’s total weight.
  6. Red data indicates a weight overload on the axle group for the system working as on-board  heavy vehicle scales. Red data displayed as part of a weigh bridge system indicates the current axle group of interest.
  7. Error in Smart Amp data. Please refer to section 4. Troubleshooting for possible reason and solutions to this error.
  8. Lift axle position. Only displays if a lift axle in that group is lifted.
  9. Units of weight measurement. Vehicle’s weight type, either Gross or Net.

Phone-Way Weighbridge Display

A typical weigh bridge display of a five axle group vehicle proceeding over a weigh bridge. The vehicle configuration used in the below example includes steer (channel A), drive (channel B) and trailer/dolly groups (channel C, D, E).

  1. Weights display tab. Touch this tab to display vehicle’s weight data.
  2. Identification number or registration number of the vehicle/trailer/dolly. Group A and B represent steer and drive of the first unit respectively.
  3. Axle group weight.
  4. Axle group channel identification.
  5. Vehicle’s total weight. This is only available upon completion of all group weights.
  6. Red data indicates the current axle group being weighed.

________________________________________________________________

System requirements

Minimum Android Version: 2.3 (Gingerbread)

Memory: 380kB

________________________________________________________________

Downloads

 Phone-Way Brochure

Phone-Way Android App

For more information or Product Manuals please contact Tramanco.
