Conversions


Vehicles
[nggallery id=2]
Click on picture for a larger view.

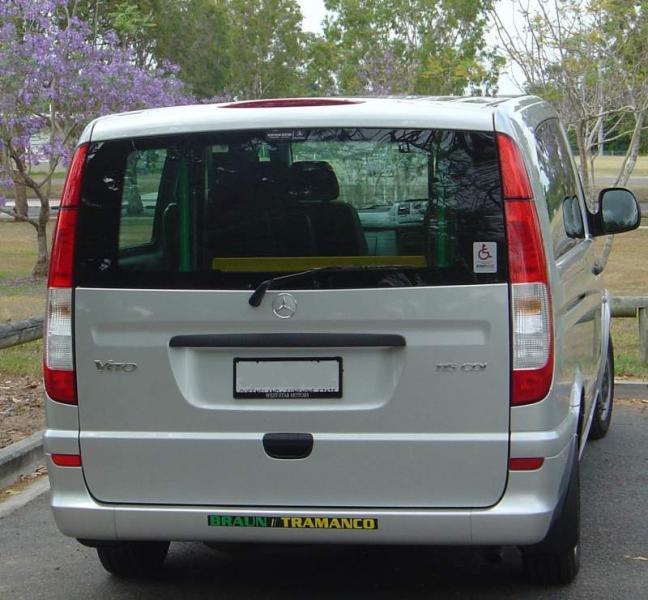

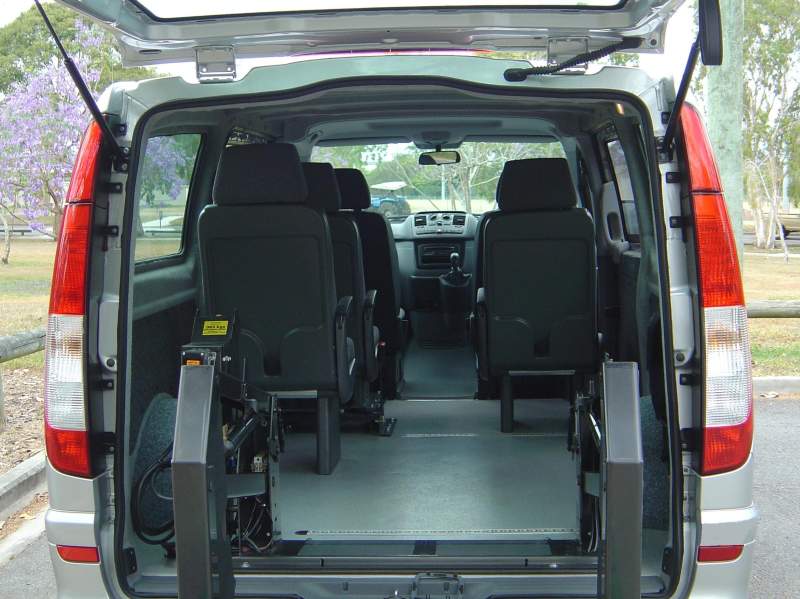

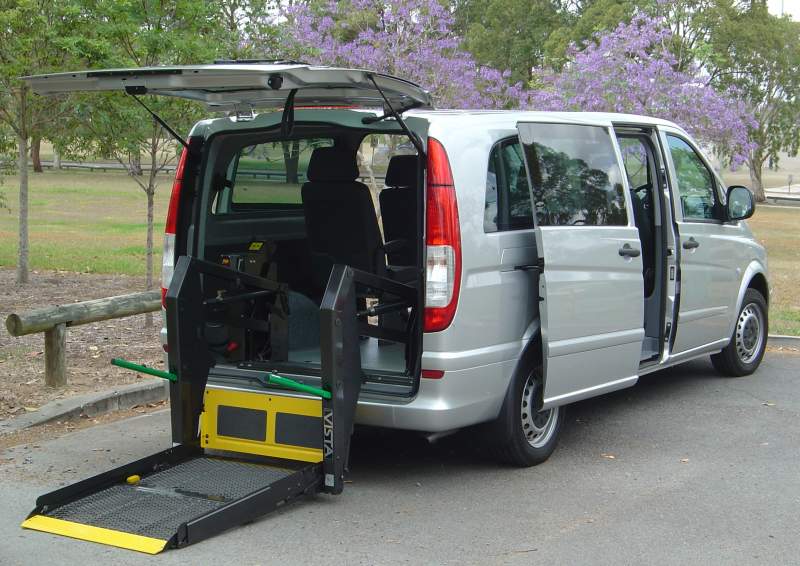

Tramanco specializes in private (consumer) conversions for wheelchair access to suitable smaller vehicles such as the Mercedes Benz Vito van, as shown here. VW Tranporter or Caravelle, Peugeot Expert and Citroen vans, Iveco Daily, Fiat Ducato, Toyota Hi-Ace and Ford Transit to name a few.

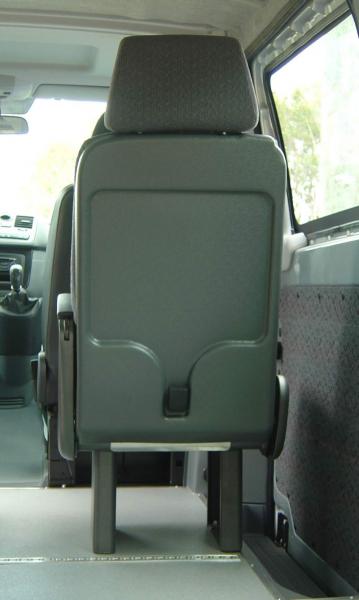

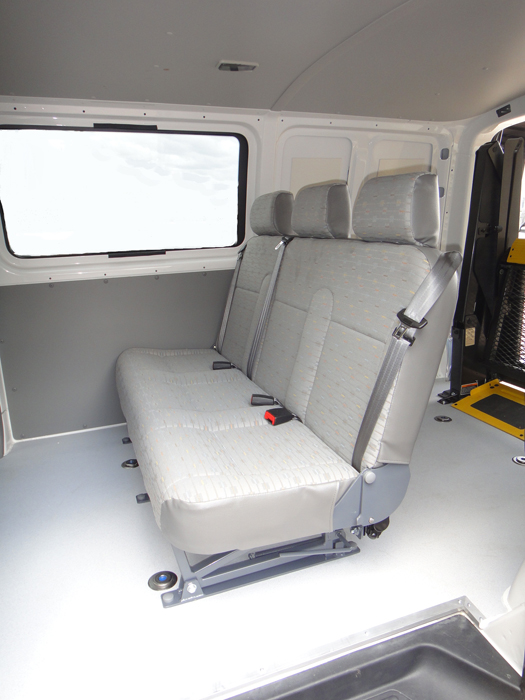

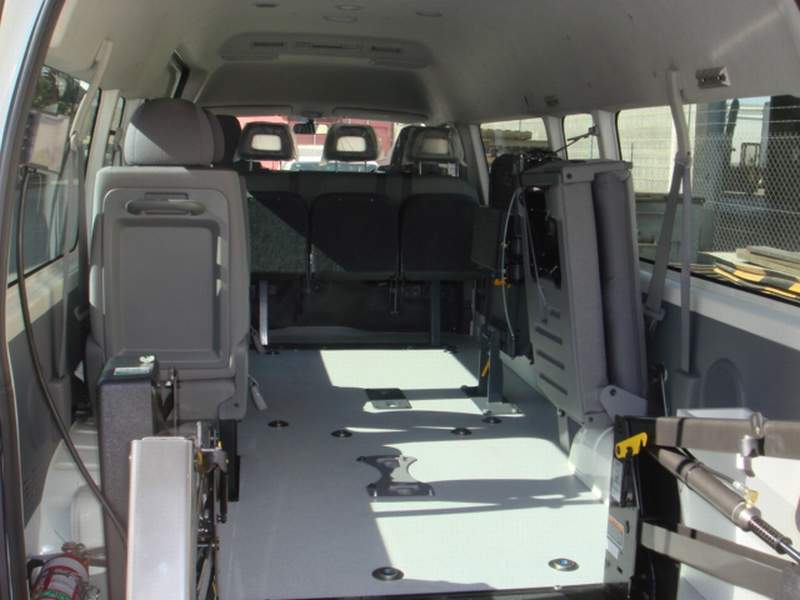

We offer a wide range of BRAUN loaders to suit many types of applications; these loaders are fitted in combination with the Q’STRAINT wheelchair restraint systems. We also install side windows, hood and side wall lining, additional seating and air conditioning if required.
All BRAUN wheelchair lifts are AS/NZS.3856.1, 1998 compliant and all Q’STRAINT wheelchair restraint systems are AS/NZS.2942-1994 compliant.

Buses and Coaches NL500 Baylift

[nggallery id=3]
Click on picture for a larger view.

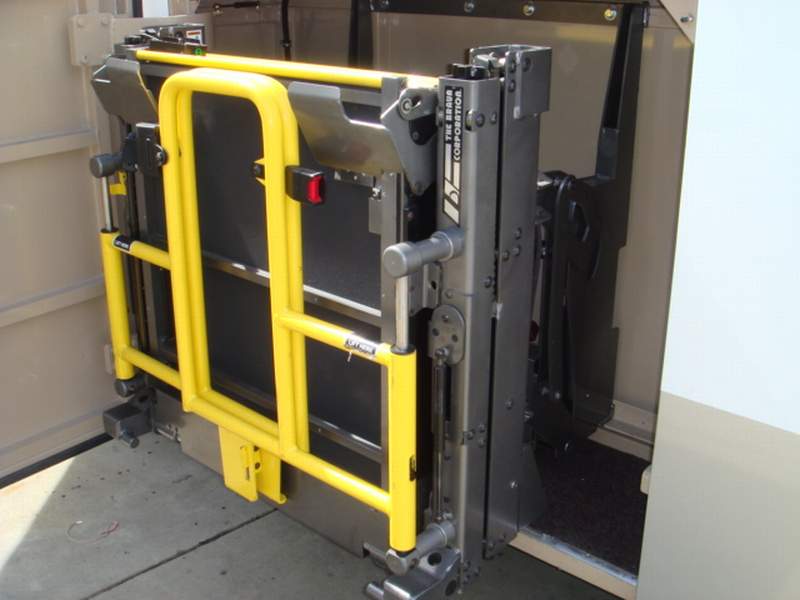

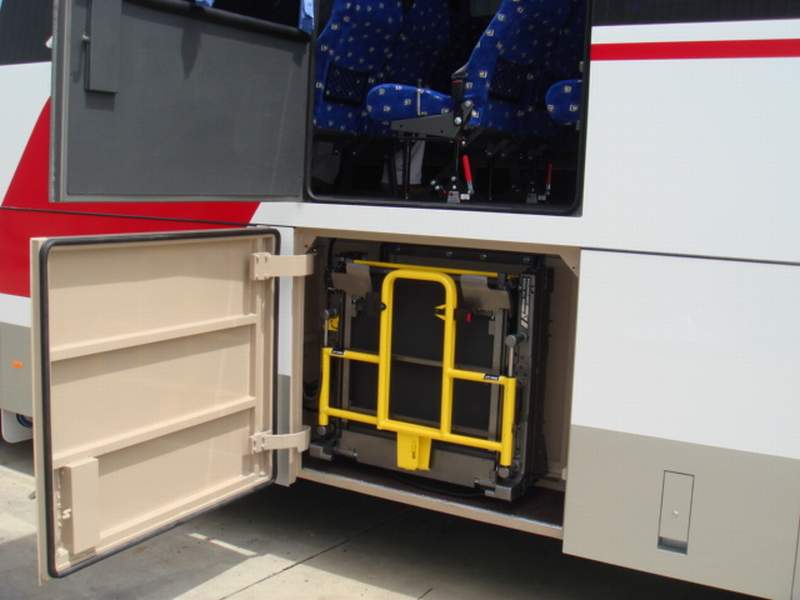

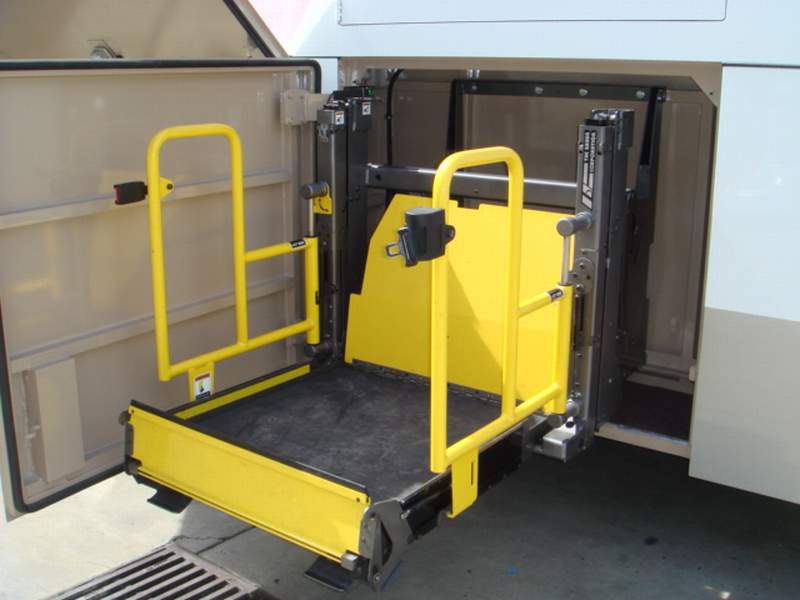

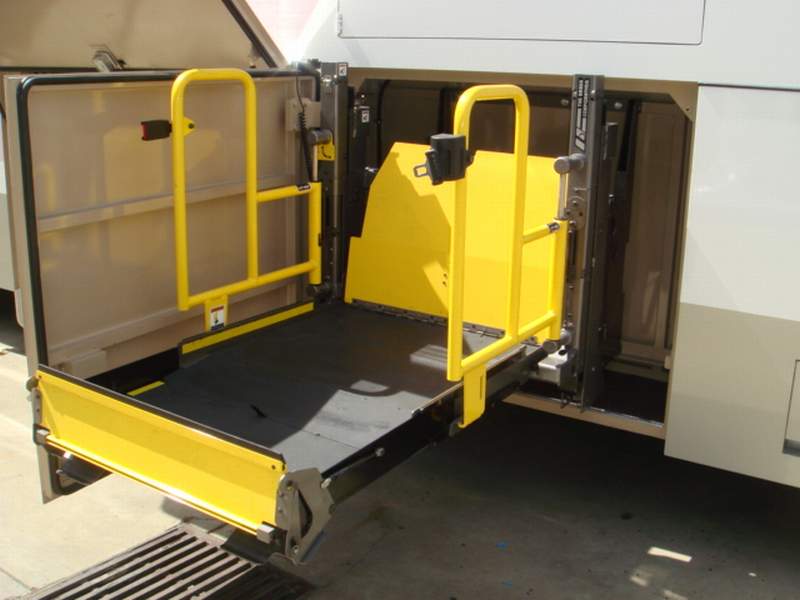

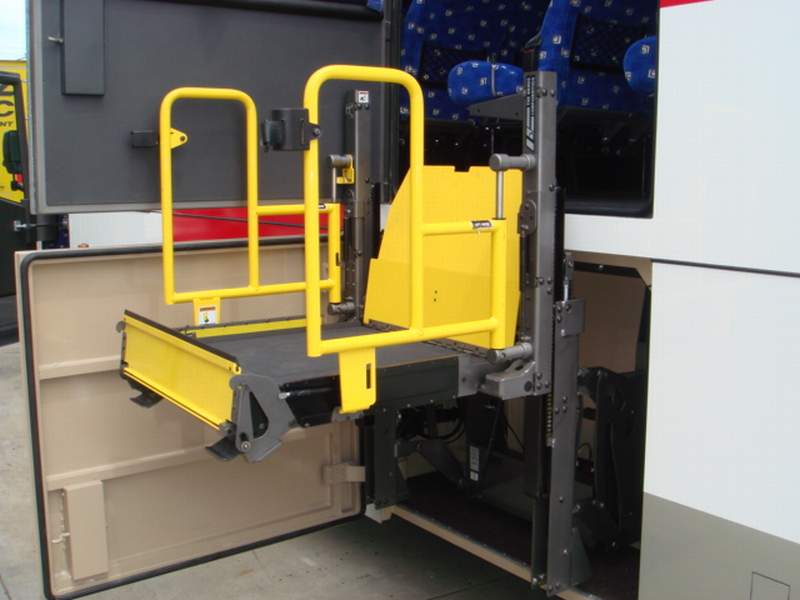

The BRAUN NL500 “Moreton” Baylift is a vertical style lift of compact design that takes up nominal space within the luggage bin area. The NL500 has significant advantages over similar lifts available in the Australasian bus and coach sector.

  • AS3856 compliant
  • automatic inboard/outboard barriers
  • hydraulic in/out motion
  • manual folding/unfolding handrails
  • manual platform folding/unfolding with manual assisted gas strut
  • manual pull out platform extension
  • hydraulic up/down telescopic motion
  • manual control can be placed anywhere within bin space for easy access
  • manual back up pump is forward facing to allow for easy access

Specifications
24 volt system
300kg lifting capacity
450mm deep when stowed
906mm height
906mm width

Toyota Commuter L918 Millenium Series
[nggallery id=4]
Click on picture for larger view.

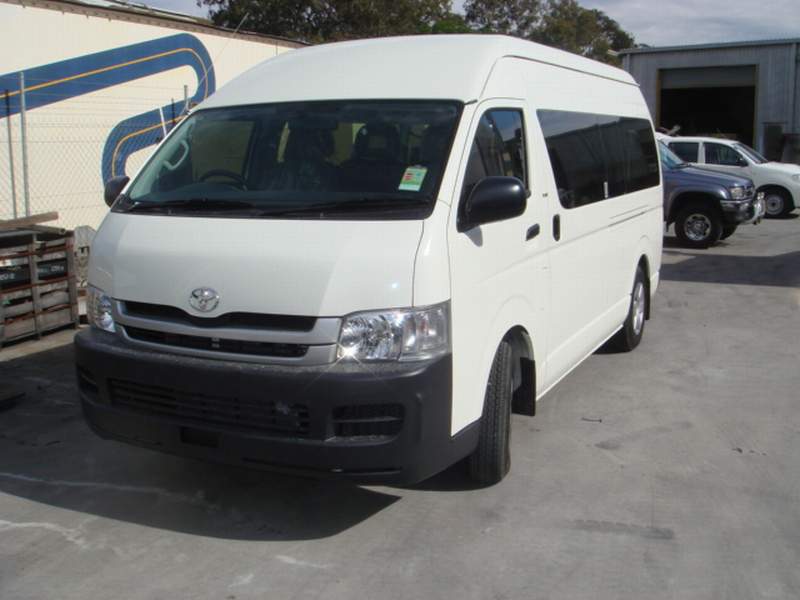

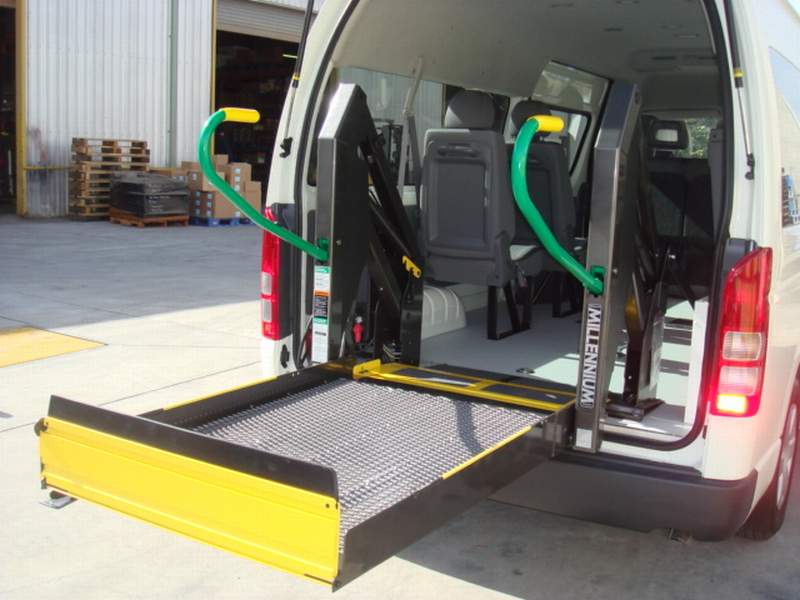

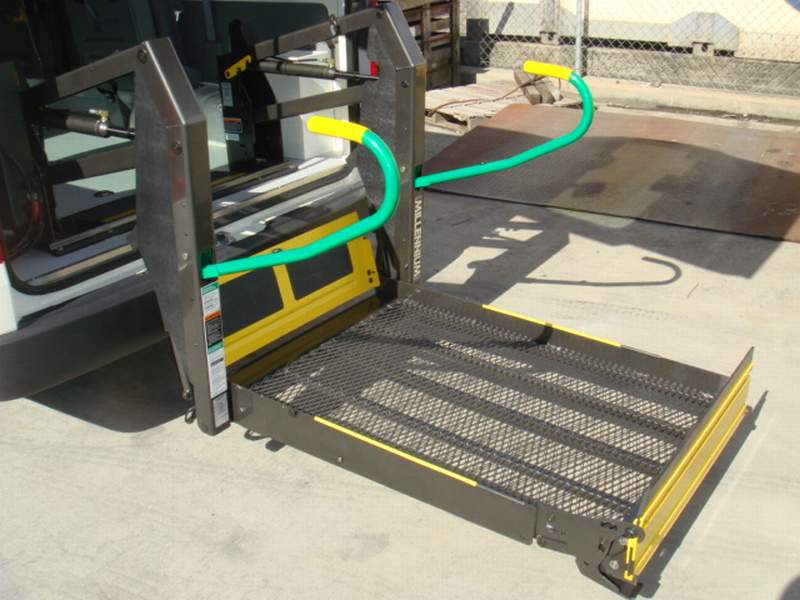

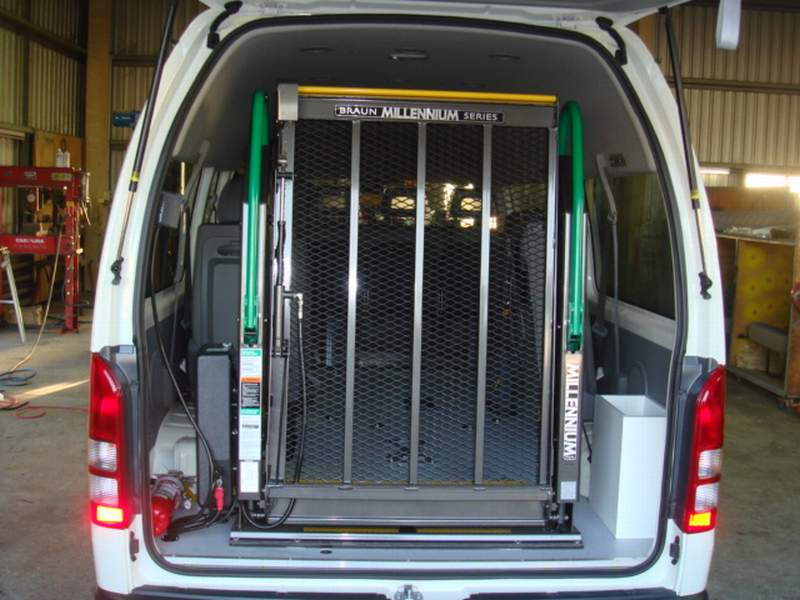

The BRAUN Millennium L918 Series featured in this Toyota Commuter conversion offers a range of different loaders with varying platform sizes to suit a variety of vehicle applications.

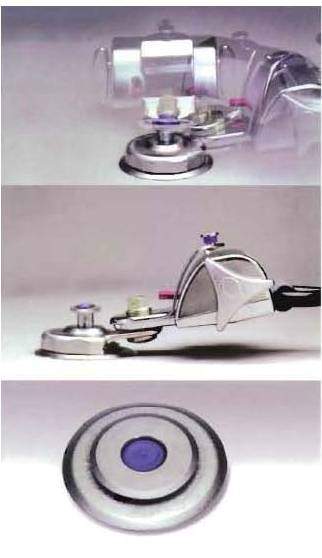

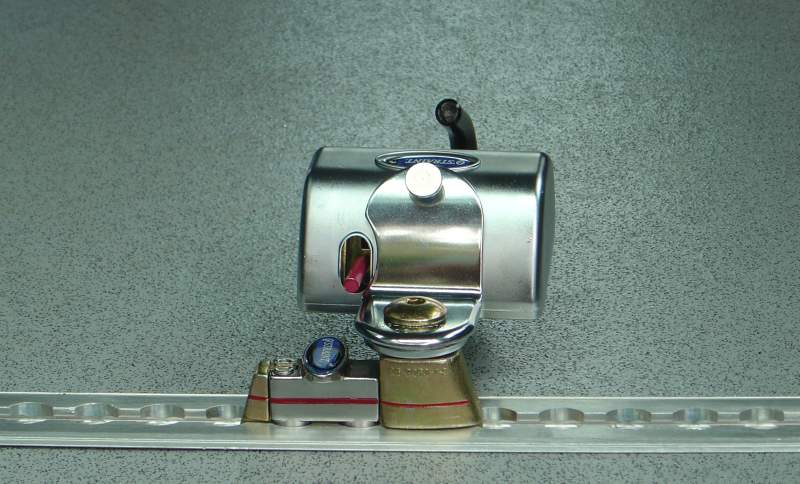

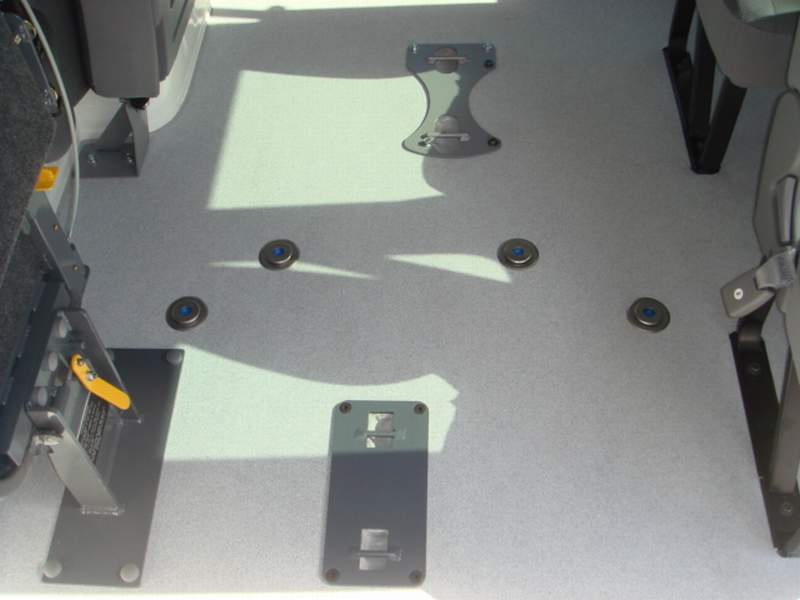

The wheelchair restraints used are the Q’STRAINT QRT MAX with Slide N Click connections.
The L918 along with the others in this series offers the following features:

  • fully automatic lift, operated by an attendant
  • hand-held control box with colour coded rocker switches for easy operation of lift
  • side or rear door application
  • miscellaneous platform widths and lengths
  • dual handrails for security and convenience
  • hydraulic outer barrier that will be in the fully up position before platform leaves the ground
  • mechanical inboard barrier ensuring extra safety for wheelchair occupant
  • integrated back up pump
  • equipped with an adjustable anti rattle feature to avoid noise during transit
  • durable high gloss powder coated finish
  • Lift-Tite system stows the lift platform securely while vehicle in transit

Specifications
12 or 24 volt system
363kg lifting capacity
400mm deep when stowed
1390mm height
1150mm width

Toyota Commuter VL998 Vista Series
[nggallery id=5]

Click on picture for a larger view.

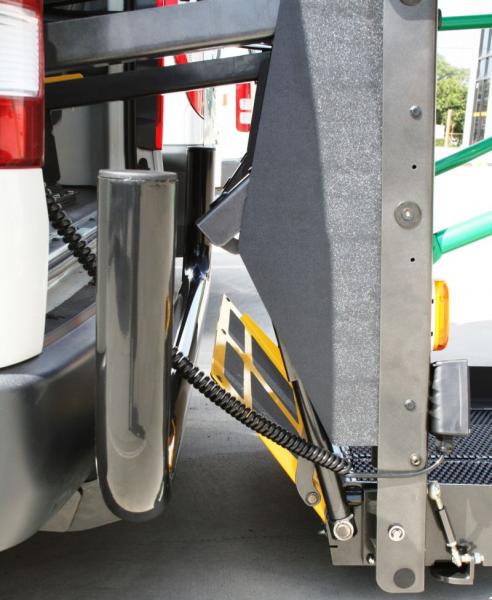

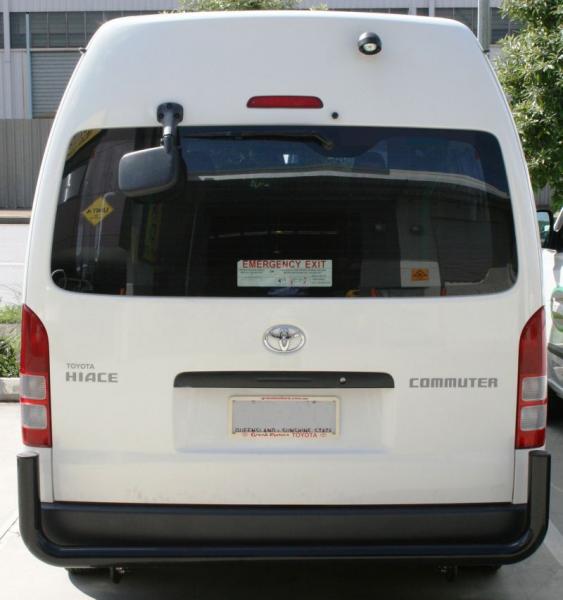

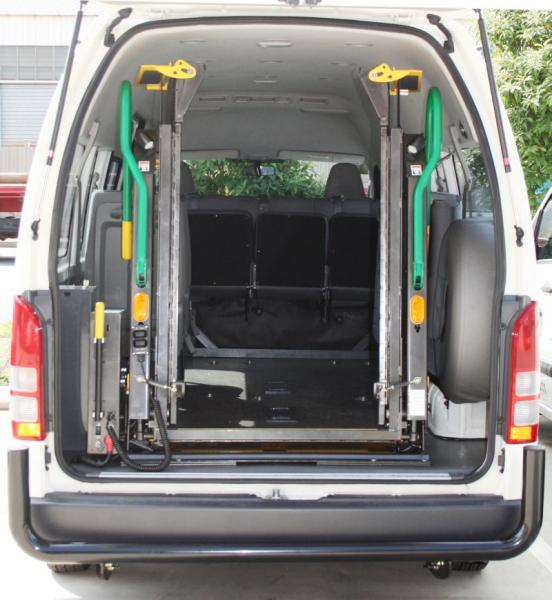

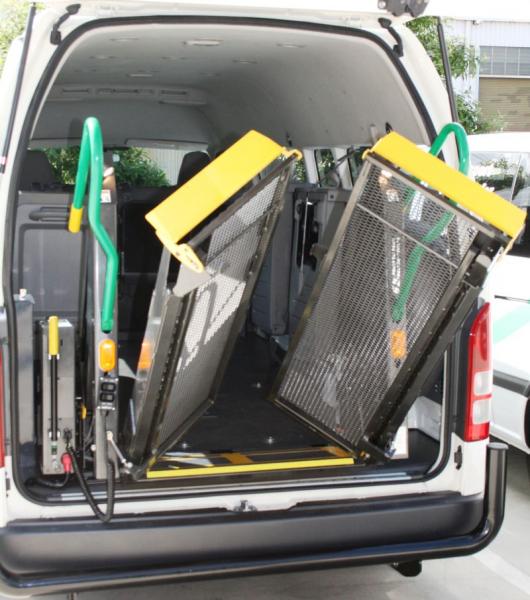

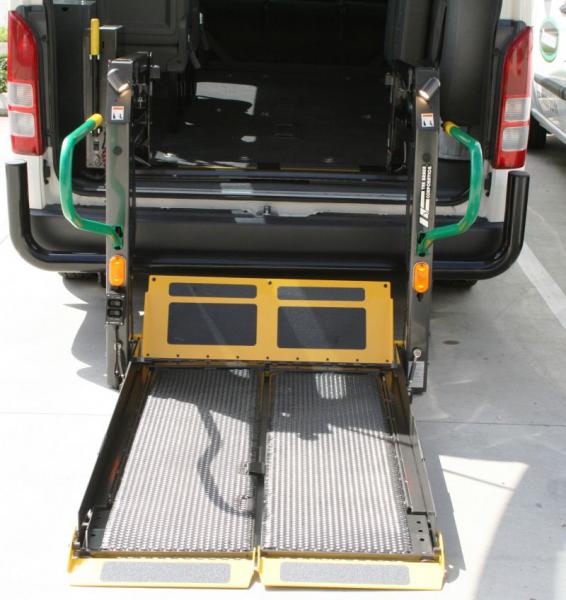

The BRAUN Vista VL998 Series featured in this Toyota Commuter conversion offers a unique split platform that automatically opens during the fold cycle which not only allows for increased visibility but also vehicle interior access through the lift opening.

Other features of this lift include:

  • fully automatic lift, operated by attendant
  • side or rear door application
  • dual handrails for safety and convenience
  • mechanically operated outboard barrier in full up position as platform leaves the ground
  • automatic mechancial inboard barrier
  • readily accessible, integrated back-up pump
  • durable high-gloss powder coat finish
  • Lift-Tite system stows platform securely whilst vehicle in transit
  • low threshold height avoids tripping hazard for ambulatory passengers
  • platform lighting provides attendant and passenger confidence in low light conditions
  • yellow flashing lights serve as a visual warning that lift is operable
  • removable pump cover allowing easy access to all components

Specifications
Lift Weight 167kg
Lifting Capacity 363kg
Power Supply 12V DC

VW Transporter VL995 Vista Series

[nggallery id=7]
Click on picture for larger view.

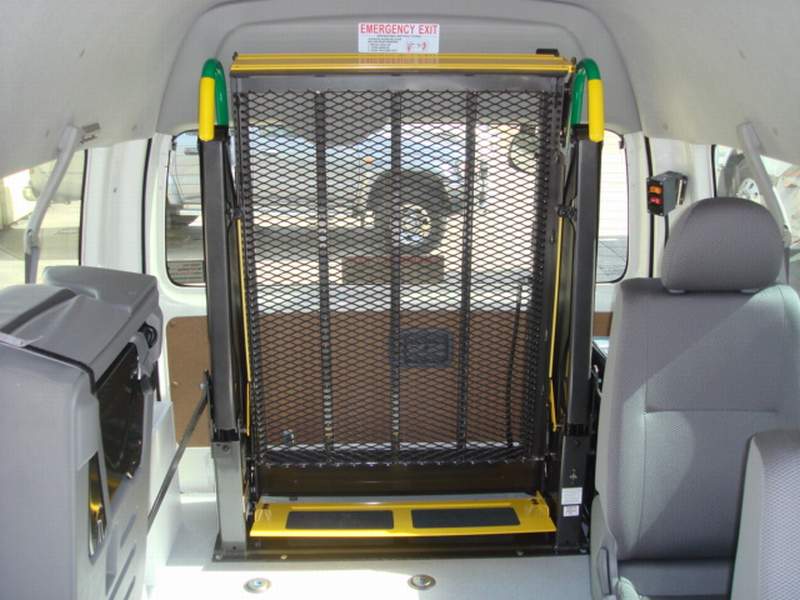

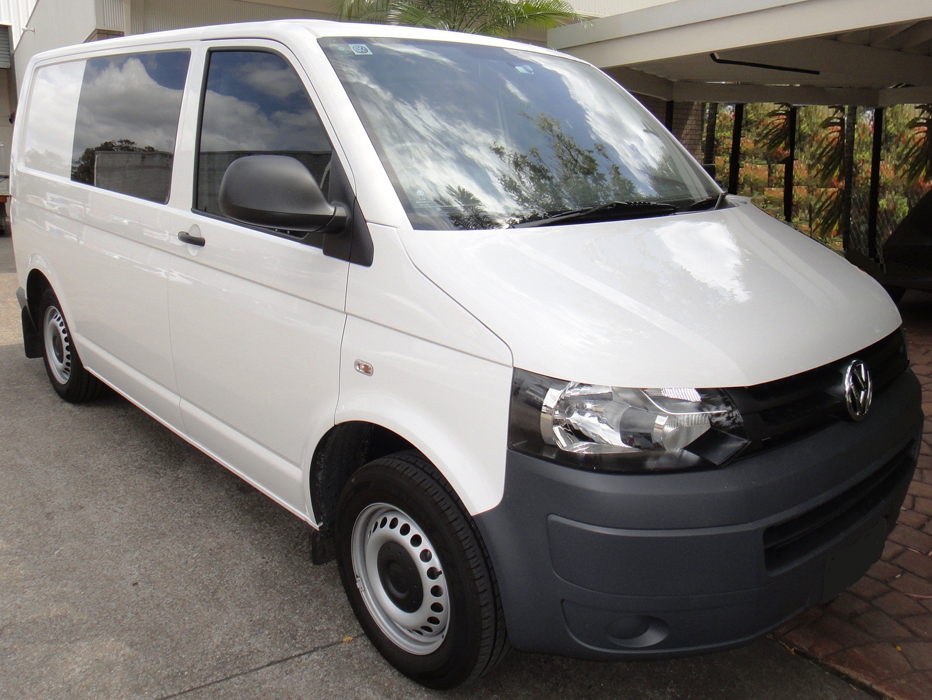

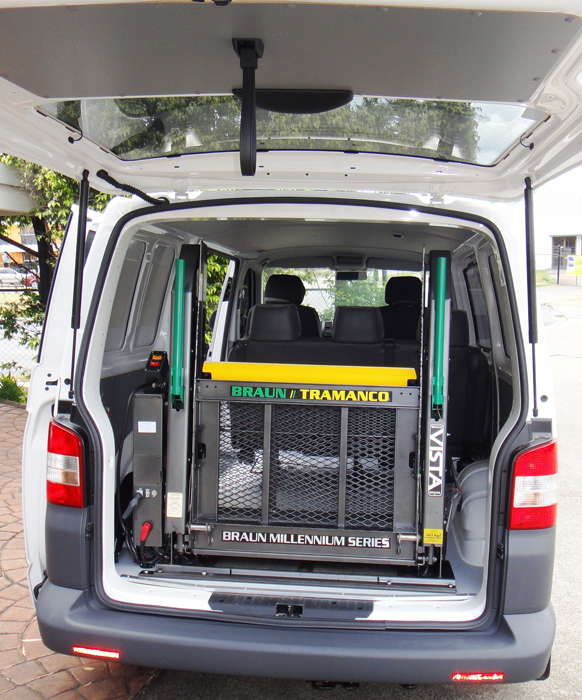

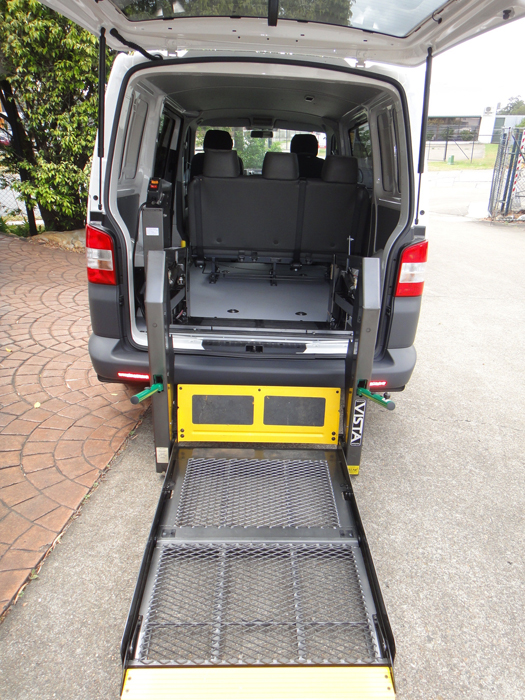

The BRAUN VL995 Vista Series featured here in a VW Transporter is also suitable for the Mercedes Benz Transporter. A unique stacking platform improves driver and passenger visibility through the rear window and allows access to the door lock normally blocked by a one piece platform.
The occupant restraint systems fitted to this installation is the Q’STRAINT QRT-MAX Slide-N-Click.

Features include:

  • fully automatic lift, operated by the wheelchair occupant or an attendant
  • colour coded rocker switches integrated on the lift
  • additional up/down switch mounted on the handrail
  • optional operation by remote control
  • integrated back up pump
  • equipped with adjustable anti-rattle feature to avoid unpleasant noise during transit
  • durable high gloss powder coated finish
  • lift-tite system stows the platform securely whilst vehicle in transit

Specifications:
Power Supply 12V DC
Lifting Capacity 363kg
Platform Size 1120L x 790W
